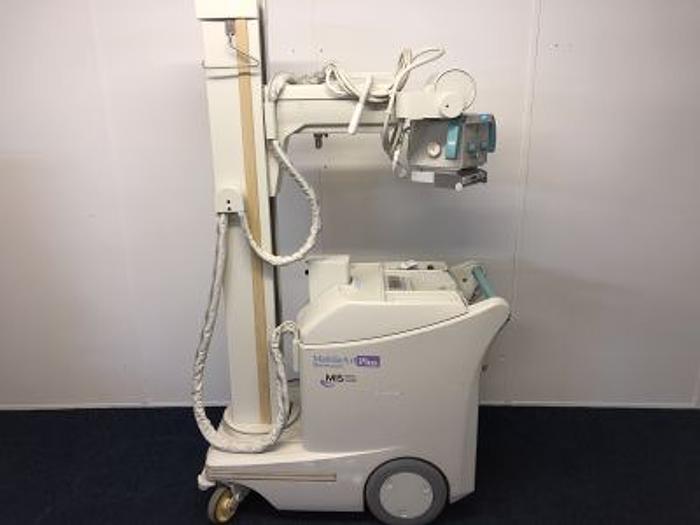

Shimadzu MobileArt Plus

MODEL MobileArt Plus

Power rating, kw @ 100 kvp (X-RAY GENERATOR). 12-/5

ALUMINUM FILTER, mm (GENERATOR) 2.5 @ 70 kV

Sid range, cm (in) (PA GANTRY). 60-201 (23.6-79)

POWER NEEDED. 100-240 VAC, 50/60 Hz

Dimensions (hxwxd),cm (in) (ANTECHAMBER).193 x 58 x 115 (76 x 23 x 45)

WEIGHT, kg (lb) (DISPLAY) 370 (814)

Power source (DRIVE ATTRIBUTES)

Ac line (POWER NEEDED) Yes

Battery type (AUX POWER SYSTEM) Sealed lead-acid

Energy capacity, mas (POWER SOURCE) 20

Charging time, full charge, hr (POWER SOURCE).8

Low-battery indicator (POWER NEEDED) Yes

HANDHELD CONTROL (GENERATOR) Yes

Cord length, m (ft) (CONTROLS) 3.7 (12)METERS

Type kvp (METERS)Digital LCD

Mas (METERS) Yes

TUBE MOTIONHorizontal, cm (in) (TUBE MOTION) 51 (20)

Vertical, cm (in) (TUBE MOTION) 141 (55.5)

Rotation (C-ARM). Z-axis, ° (Rotation)±180. X-axis, ° (Rotation)±270

SELF-PROPELLED (GENERATOR) Yes

Speed, mph (GENERATOR) 0-3 (0-5 km/hr)

Max incline, ° (GENERATOR) 7

CASSETTE STORAGE (Rotation)10-7

PATIENT CENTERING BEAM (GENERATOR)Yes

X-RAY TUBE ANODE Low-speed rotating

Heat capacity, hu (X-RAY TUBE) 300

Cooling, hu/min (Maximum output) 170

Max. output, kvp 125

Range (WAVELENGTH, nm) 40-125mAs

RANGE (X-RAY TUBE) 0.32

Increments (TIMING DEVICE) 12.5%

Focal spot, mm 0.7 x 0.7

Tube power rating, kw @ 100kvp 12 @ 0.1 sec

OTHER ATTRIBUTES (Interference compensation)Drive mechanism can be operated from collimator for precise bedside positioning; "inchmover feature;" collimator housing can be rotated ±110°; exposure lamp indicates standby, rotor up, exposure; 72 APR userselectable settings; all-free button releases al

FDA CLEARANCE (Interference compensation) Yes

CE MARK (MDD) (Interference compensation) Yes

Manufactured 2003   Good condition complete with key,exposure switch and user manual
